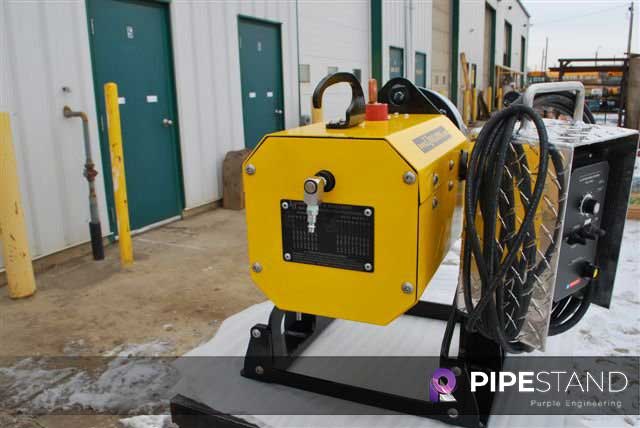

80 Nm Pipe Turning Positioner (Benchtop Positioner)

Product Code: 80NMPIPE

Cabled or wireless hand pendant with or without digital readout.

Bi-directional or variable speed foot switches.

Portable scissor lift cart.



80 Nm Pipe Turning Positioner (Benchtop Positioner) Specifications

Load Capacity* 136 kg at chuck face (should be mounted to suitable base)

300 lbs at chuck face (should be mounted to suitable base)

Turning Torque  80 N.m

700 in-lbs

Table 254.0 mm OD turntable compatible with 203.2 mm chuck, gripper or bolt on

10″ OD turntable compatible with 8″ chuck, gripper or bolt on

Footprint 419.1 mm x 381.0 mm x 355.6 mm (height to center of gripper in horizontal position)

16.5″ x 15″ x 14″ (height to center of gripper in horizontal position)

Equipment Mass Positioner: 42.6 kg / 94 lbs

Chuck: 16.3 kg / 36 lbs

Power Requirements 110 V, 1-ph, 15A input
Operation Speed Range 0.7-7 RPM
Controls Variable Speed, forward/reverse DC drive. Optional foot or hand switches
Range of Operation Manually adjustable, 0° – 90°, in 15° increments
Ground Spring-loaded carbon brush 400 Amp (standard)
Optional Accessories Bolt on torch mount with rack/pinion adjustability, beveling head with angle gauge
Applications Ideal for use in light-duty and/or portable applications; air purge for stainless steel or TIG welding applications.

80 Nm Pipe Turning Positioner (Benchtop Positioner) Request a Quote

Specifications
Supporting Document (Optional)
Max. file size: 50 MB.
This field is for validation purposes and should be left unchanged.

80 Nm Pipe Turning Positioner (Benchtop Positioner) Product Information

Pipe Stand’s bench top positioners are available with a variety of features, such as:

  •  Air purge fitting for stainless steel or TIG welding applications
  • Hollow spindle
  • Height adjustable roller cart
  • Torch mount options

Perth and Brisbane Distribution Centres for Delivery Australia Wide Ordering Information

We carry stock in both our West Australian and our Queensland warehouses and can arrange delivery Australia wide. Some items are special order however we still have reasonable timeframes on delivery.

To arrange a quote please use the “Request a Quote” form. If you are looking for a specialty item or a custom build, please contact us directly with your specifications and one of our engineering team will be able to assist.

Need a different Product? We Can Help

Purple Engineering provides a wide range of Pipe Stands & Heavy Duty equipment. With our expansive range and industry connections it is likely that we have the product you are after or know who in the market has it.

Please call us or use the "Request a Quote" form and we can confirm if we have the item you are searching for.

Purple Engineering is an Australian based company and we have a wide range of equipment for Onshore & Offshore Pipeline, Oil & Gas and Power Generation industries.

Please Email us the specifications of the item you require & we will confirm the availability.
